Richardson, Texas · Dallas/Fort Worth
Precision Manufacturing and Machining Solutions for Aviation, Aerospace, Defense and Energy Sectors
A 100,000 sq. ft. machining and fabrication facility in Richardson, Texas, with over 40 years of machining experience.
Quality is Not the Goal, It's the Expectation!
Certified
ISO 9001:2015 and AS9100D
Certificate 21077 · PRI Certification℠ · valid through 3 January 2028
PMF states
ITAR
“Comply with ITAR regulatory requirements and specifications”
— PMF Quality Policy Statement
Facility
100,000 sq. ft.
Manufacturing facility in Richardson, Texas
Source: About PMF
Experience
40+ years
of machining experience
Source: PMF Brochure
What we build

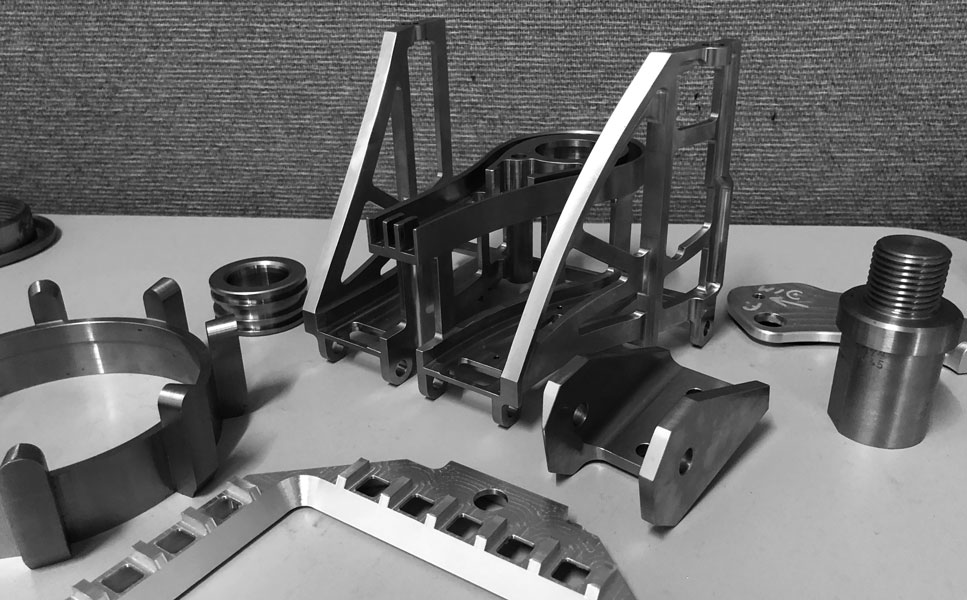

“Our shop is best known for our QPL7788 edge-lit panels, F-16 and H-60 aircraft parts, aircraft seats, and military products. We have the capacity to run low-high volume parts and are continuously investing and growing our production capabilities.”
What a buyer needs to check
Qualified to bid
ISO 9001:2015 and AS9100D
Certificate 21077 · PRI Certification℠ · valid through 3 January 2028
“The audit was conducted in accordance with the requirements of AS9104/1:2012-01.”
“PRI Certification℠ is accredited under the ICOP Scheme.”
PMF states
“Comply with ITAR regulatory requirements and specifications”
Inspection and measurement
- Mitutoyo QM-M353 with GEO MEASURE 3000 software
- Optical comparator
- 4 × Brown & Sharpe micro-hites
- 3 × precision granite tables
- Fluorescent penetrant inspection
- Proof load testing
- Hydraulic line testing
- Handheld micrometers, calipers, and thread gages for both ID and OD inspection
Turn-key capability

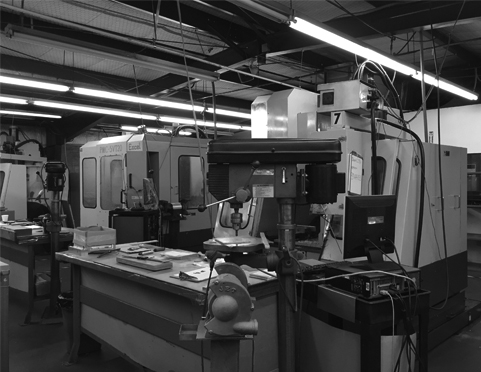

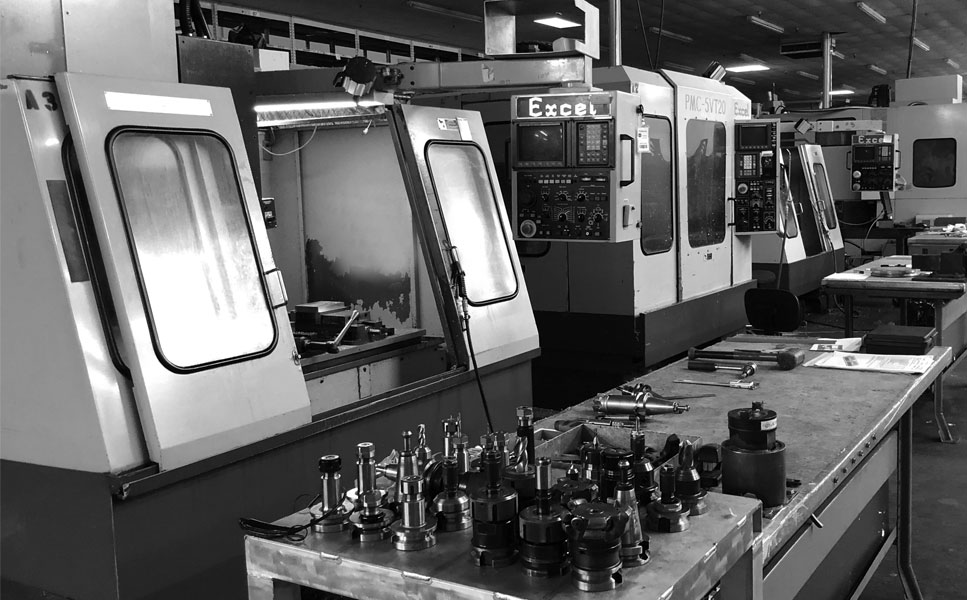

- 3, 4 and 5-axis CNC vertical and horizontal milling

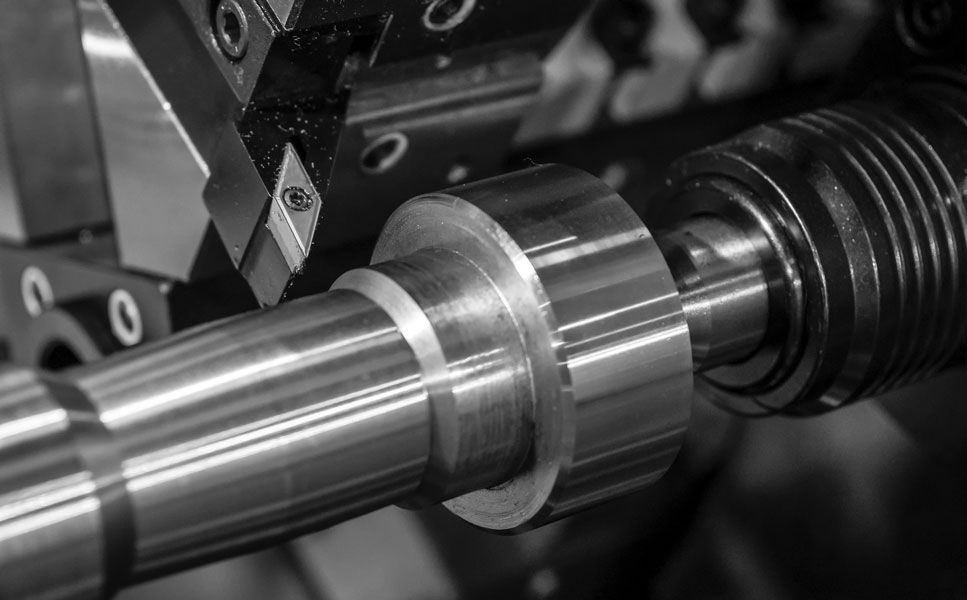

- CNC turning (thru-spindle and chucking)
- High-speed CNC router

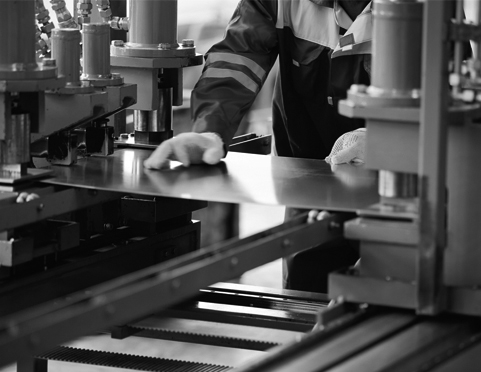

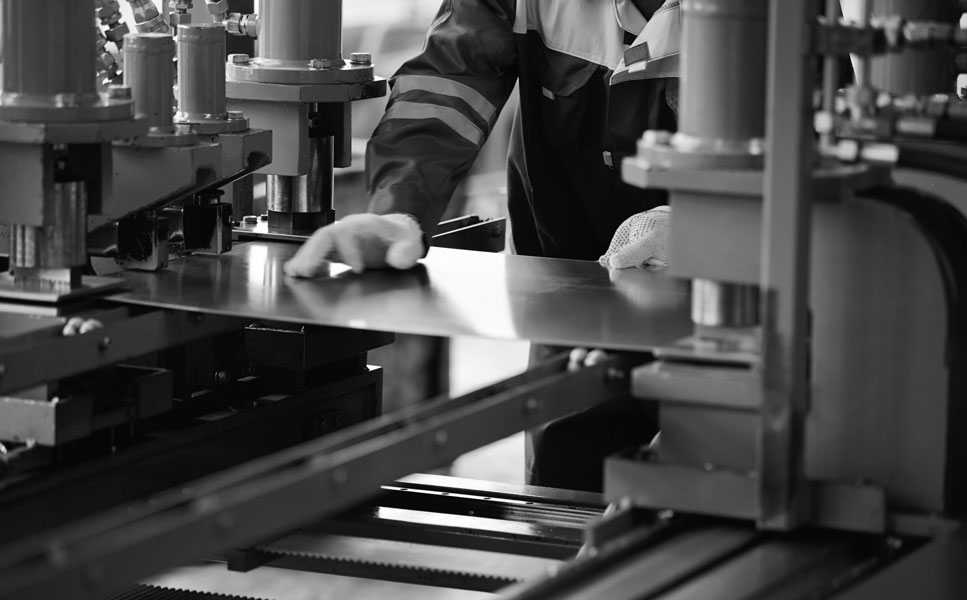

- Sheet metal punch press
- Sheet metal fabrication brakes
- Roll forming
- Bead roller
- Certified welding and weldments — aluminum, T304, SS, 1010-1020 and CRS steel; MIG, TIG and stick
- Cable swaging
- Hardware insertion
- Knurling, threading, engraving
- Abrasive blasting
- Prime and paint
- Ink stamping
- Silk-screen print
- Laser etching
- Turn-key assembly
“At Polytronix Machining and Fabrication, our engineers will work with you on product designs, material selection and guidelines to make sure your product meets your customer specifications.”
Materials we run
Commonly used materials, PMF Brochure
Aircraft alloy sheets
- 4130 — bars, sheets, plates
- 4140 — bars
- E-4340 — bars and plates
- 4142
Precipitation hardening types
- 13-8 Var
- 17-4 (AISI 630)
- 15-5 Var
- 17-7 (AISI 631)
Stainless steels
- Type 301
- Types 304 & 304L
- Types 303S & 303SE
- Types 316, 316L, 317 & 317L
- Type 321
- Type 347
Straight chromium types
- Type 410
- Type 416
- Type 418
- Type 431
- Type 440C
Aluminum
- 2024 — rounds, hexagons, squares, rectangles, sheet, plate
- 5052 — sheets and plate
- 6061 — rounds, hexagons, squares, angles, rectangles, channels, beams, tees, sheets, plates
- 7075 — rounds, rectangles, squares, sheet, plates
Hot/cold rolled sheets or plates
- 1018 — rounds, hexagons, squares, flats
- 1213 & 1215 — screw machining stock
- 1040-1045 microalloy, chrome-plated rounds
- 12L14 — super free-machining, leaded
Tubing and pipe
- Mechanical tubing — commercial and aircraft quality
- Pipe — steel and aluminum
- Structural steel tubing — square and rectangular
Plastics
- Delrin
- Nylon
- Makrolon
Also stocked
- Brass C36000 — ½ hard
- Copper
- Galvanized steel
- Glass
Get to Know
Polytronix Machining & Fabrication
recent projects
We Offer Precision Machining, Sheet Metal Work, Welding and Aerospace Assembly & Fabrication
Polytronix machining & fabrication get to know us
What happens when a team of dedicated individuals share the same goal? You can see the results in the work of PMF. The reason we're so proud of what we do is that we truly make a difference in people's lives.
